Complete FCU Kit
BRQ-FB-KIT is a compact fan coil unit hook-up solution combining pressure-independent flow control with isolation, bypass, a strainer with drain, flexible hoses and pressure/temperature test points. Designed for chilled and hot water FCU applications, the kit supports installation, commissioning and ongoing maintenance.
Key benefits
- Three-in-one PICV: differential pressure control, modulating control and flow presetting.
- Supply/return isolation and bypass arrangement for servicing and system flushing.
- Integrated strainer and drain for forward flushing and backflushing.
- P/T test points support flow and differential pressure checks during commissioning.
- DZR brass wetted valve bodies and threaded connections.
- Stainless steel braided hoses: 300 mm standard; 150–600 mm available on request.
- Optional EPP insulation box helps limit condensation.
Technical overview
| Model | BRQ-FB-KIT |
|---|---|
| Sizes | DN15, DN20, DN25 |
| Kit pressure rating | PN25 |
| Kit service temperature | Typically 1–110°C; selected actuator and component limits also apply. |
| Connections | Threaded, ISO 7 / BS EN 10226-1 |
| Media | Chilled or hot water with corrosion inhibitor |
| Valve bodies | DZR brass |
| Hose braid | SS304; SS316 option |
PICV operating ranges
| Size | Flow range (m³/h) | Differential pressure (kPa) |
|---|---|---|
| DN15 | 0.18–0.60 | 25–400 |
| DN20 | 0.30–1.00 | 30–400 |
| DN25 | 0.34–1.70 | 30–400 |
BRQ-ACT-13 actuator configuration
The kit can be configured with the compatible BARIQ BRQ-ACT-13 actuator: 24 V AC/DC supply, 0–10 V proportional control, electronic failsafe positioning, NFC configuration and a backlit LCD. Position feedback is available with the four-core cable configuration.
For this actuator configuration, observe the actuator fluid temperature limit of 100°C and all kit/component operating limits. Refer to the actuator datasheet for commissioning and failsafe settings.
View BRQ-ACT-13 actuator details →

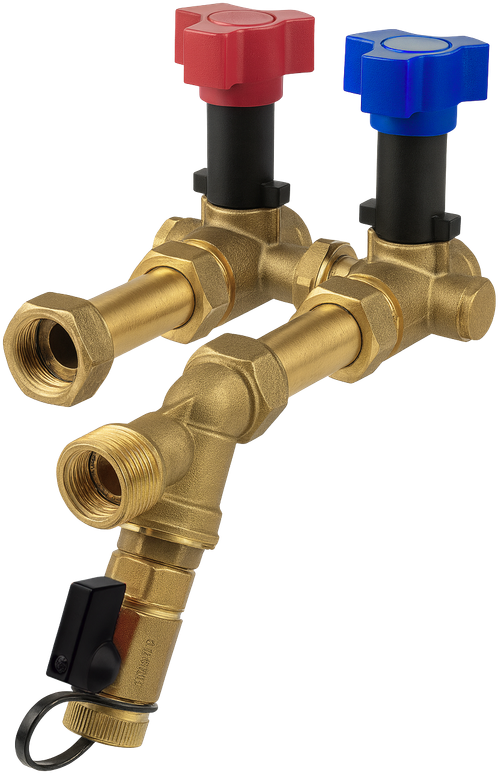

Product image shows the isolation, bypass and strainer assembly from the supplied datasheet. The complete configuration includes additional components; confirm the required size, actuator, hoses and insulation when ordering.
