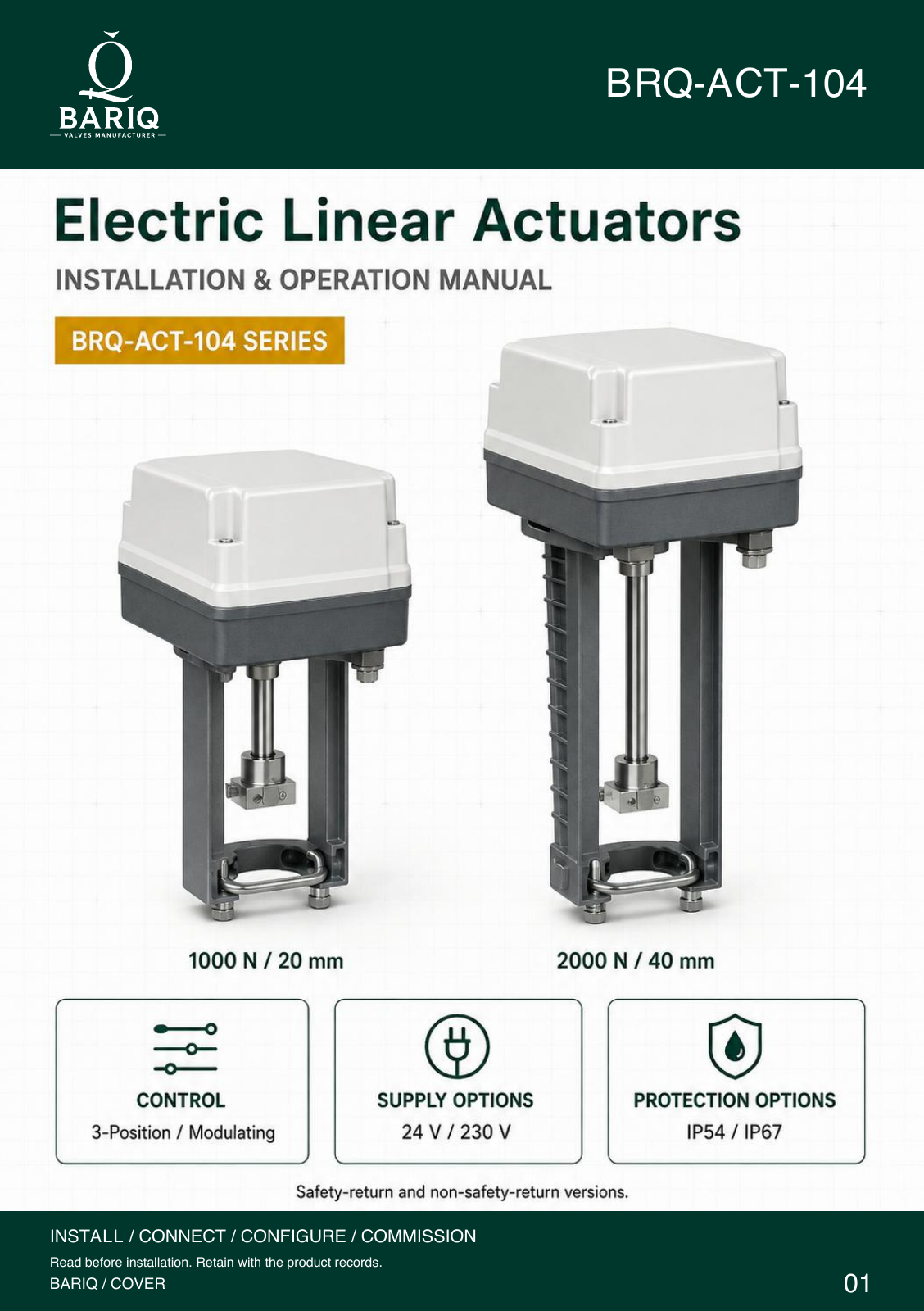

BRQ-ACT-104 Electric Linear Actuators
Electric linear actuator series with 1000 N / 20 mm or 2000 N / 40 mm options. Available with modulating or 3-position control, 24 V or 230 V supply, IP54 or IP67 protection, and…
Built for dependable
flow control.
Electric linear actuators for regulating valvesThe BARIQ BRQ-ACT-104 series offers electric linear actuation with a brushless DC motor and a choice of control, power supply and enclosure configurations. Select the complete model code to match the valve and application.Configuration optionsForce / nominal stroke1000 N / 20 mm (code…
Everything your project needs.
Electric linear actuators for regulating valves
The BARIQ BRQ-ACT-104 series offers electric linear actuation with a brushless DC motor and a choice of control, power supply and enclosure configurations. Select the complete model code to match the valve and application.
Configuration options
| Force / nominal stroke | 1000 N / 20 mm (code 10) or 2000 N / 40 mm (code 20) |
|---|---|
| Control | Modulating (M) or 3-position (T) |
| Supply voltage | 24 V or 230 V, ±10%, according to selected model |
| Enclosure | IP54 or IP67, according to selected model |
| Safety return | NR: without safety return; FR: with safety return |
| Running speed | 2 or 6 s/mm |
| Operating temperature | 0 to +55°C |
| Humidity | Below 95%, non-condensing |
Modulating versions
Control input: 0–10 VDC, 2–10 VDC or 4–20 mA. Feedback options: 0–10 VDC, 2–10 VDC or 4–20 mA. Refer to the manual for signal settings and electrical requirements.
Model selection
Example: BRQ-ACT-104-M-24-10-FR-IP67 specifies modulating control, 24 V supply, 1000 N / 20 mm, safety return and IP67 protection.
Mounting brackets are specified separately to suit the valve interface. Confirm force, stroke, supply, control and safety-return requirements when requesting a quotation.
