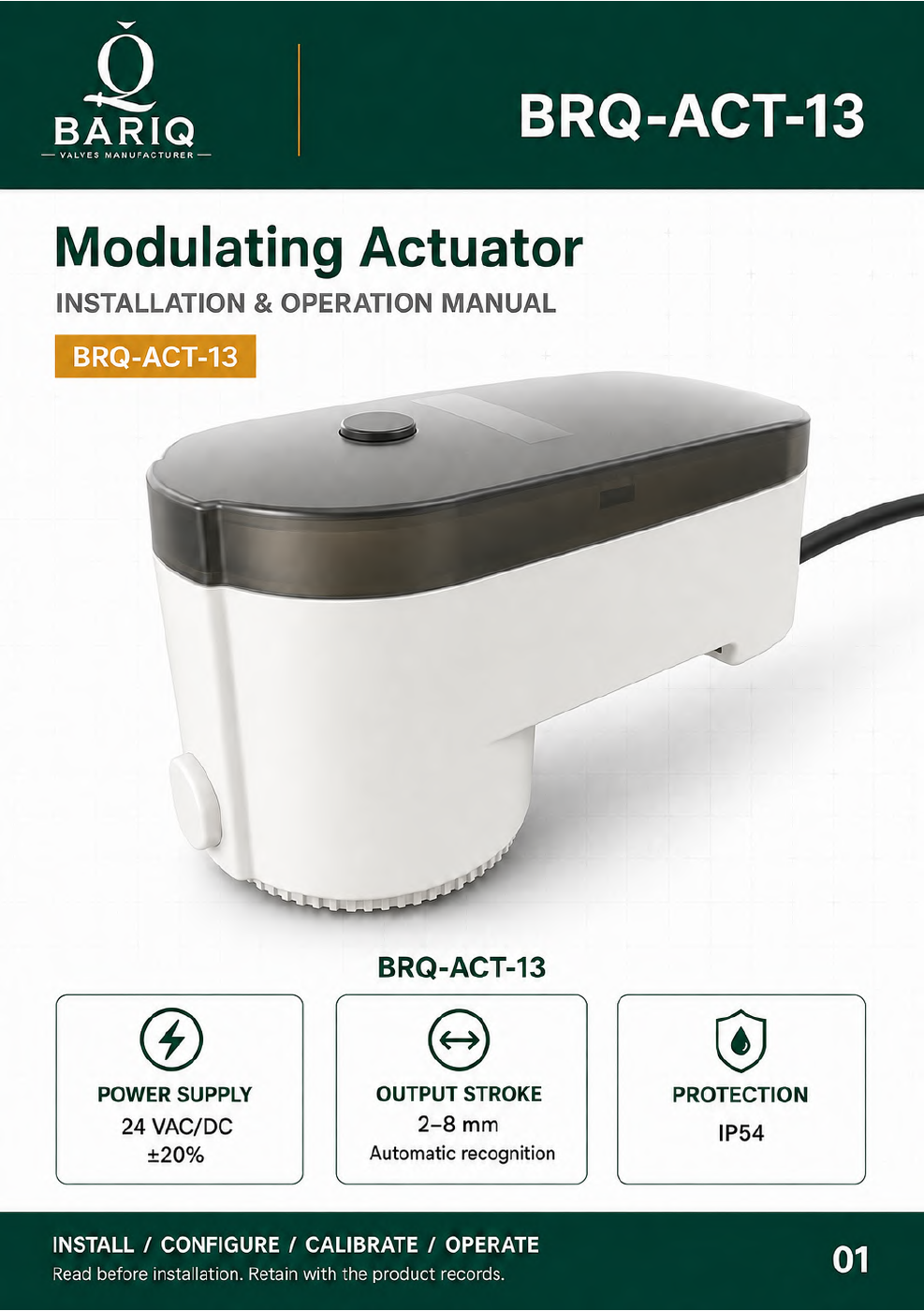

BRQ-ACT-13 Modulating Actuator
24 V AC/DC proportional actuator with electronic failsafe, NFC commissioning and backlit LCD. Adjustable 2–8.5 mm stroke, selectable 100/125/150/200 N force and IP54 protection in all mounting orientations.
Built for dependable
flow control.
Proportional valve control with electronic failsafeThe BARIQ BRQ-ACT-13 is a compact electromotive actuator for water-bearing valves in heating, cooling and building automation systems. It combines proportional control, automatic travel recognition, NFC commissioning and a backlit LCD with electronic power-loss positioning.Technical specificationsPower supply24 VAC, -10% / +20%, 50–60 Hz;…
Know every critical detail.
Materials and construction details presented clearly for technical review.
Everything your project needs.
Proportional valve control with electronic failsafe
The BARIQ BRQ-ACT-13 is a compact electromotive actuator for water-bearing valves in heating, cooling and building automation systems. It combines proportional control, automatic travel recognition, NFC commissioning and a backlit LCD with electronic power-loss positioning.
Technical specifications
| Power supply | 24 VAC, -10% / +20%, 50–60 Hz; 24 VDC, -20% / +20% |
|---|---|
| Operating power | 2.1 VA / 1.2 W |
| Control input | 0–10 VDC, 100 kΩ input resistance; PWM: 100–1000 Hz |
| Stroke | Maximum 8.5 mm; adjustable 2–8.5 mm |
| Actuating force | 125 N default; selectable 100 / 125 / 150 / 200 N; tolerance -20% / +40% |
| Actuation time | 15 s/mm default; selectable 30 s/mm |
| Position feedback | 1–9 V default; configurable 1–5 V or 0–10 V. Output current 1 mA; load 10–1000 kΩ; resolution 0.1 V |
| Display | 10 × 20 mm LCD with blue backlight and multicolor LED status indication |
| Protection | IP54 in all installation positions; Class III |
| Temperature limits | Fluid: 0 to +100°C; ambient: 0 to +50°C; storage: -20 to +70°C |
| Connection cable | Plug-in white PVC, 1 m, 4 × 0.22 mm². A three-core connection does not provide feedback |
| Size and weight | 65 × 45 × 90 mm (H × W × D); 155 g including 1 m cable |
| Enclosure | Signal white RAL 9003 polyamide with transparent polycarbonate cover |
Electronic failsafe
After a supply interruption of at least 2 seconds, stored energy moves the valve to its selected parking position. The default is 0%, adjustable from 0% to 100% in 10% steps. A fully depleted energy store requires 16 hours to charge; residual charge may be low after long storage.
Installation and commissioning
Plug-in valve adapter, detachable cable and manual adjustment simplify installation. Select the adapter to match the valve geometry: standard M30 × 1.5, with alternative adapters described in the data sheet. NFC allows configuration of force, speed, stroke, feedback and valve characteristic. Initial travel recognition can take up to 7 minutes.
Mount only with the valve pressure plate fully retracted. Refer to the technical data sheet for wiring, adapter dimensions, commissioning and service instructions.
