BRONZE
MODEL S200

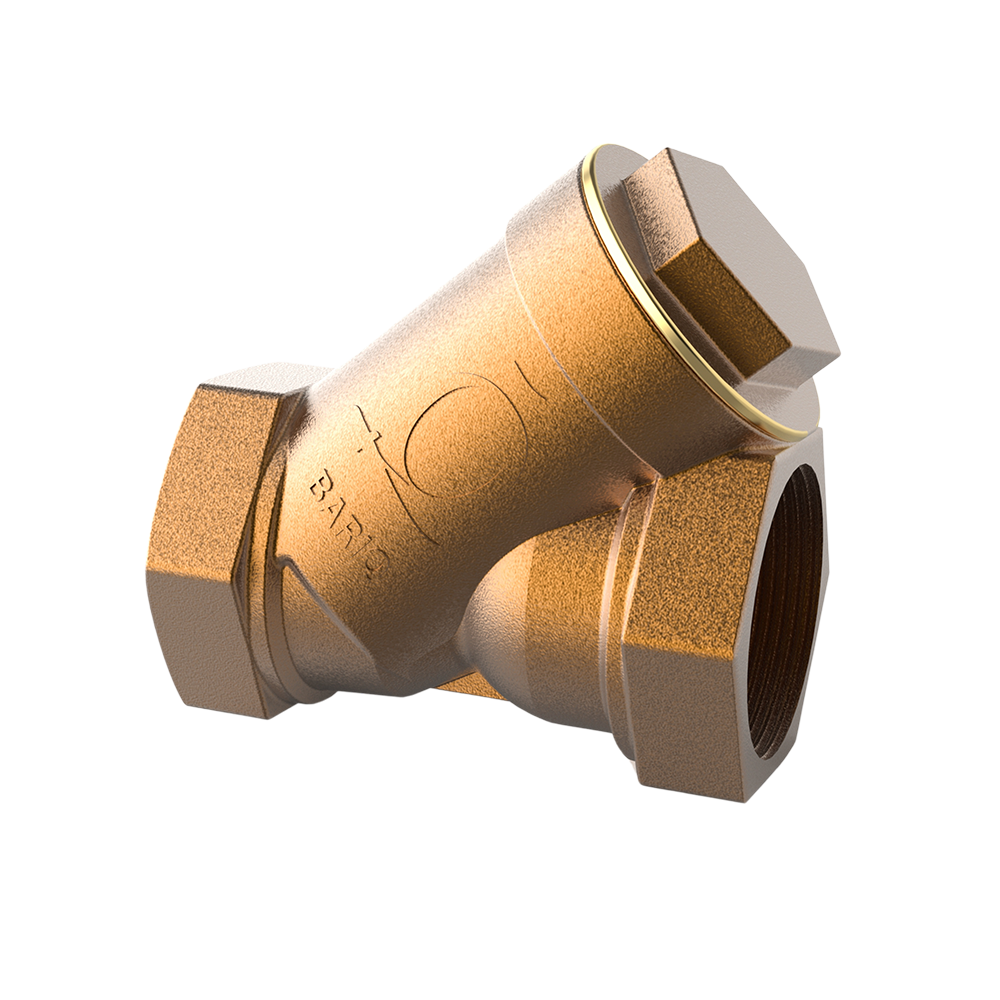

BRONZE Y TYPE STRAINER Model S200
BARIQ Y TYPE STRAINER Features : Y TYPE STRAINER use of pipeline strainers will make a significant contribution to the reliability of a piping system and to optimise performance of the equipment - pumps,…
BodyBronze
Stemand to optimise performance of the equipment - pumps, valves, , traps etc
?
Need help selecting the correct size?Talk to the BARIQ engineering team.
Engineering overview
Built for dependable
flow control.
BARIQ Y TYPE STRAINER Features : Y TYPE STRAINER use of pipeline strainers will make a significant contribution to the reliability of a piping system and to optimise performance of the equipment - pumps, valves, , traps etc Strainers are a low cost investment for any piping system…
BodyBronze
Stemand to optimise performance of the equipment - pumps, valves, , traps etc
Technical resources
Everything your project needs.
PDF
Product DatasheetSpecifications and dimensions
DWGEngineering DrawingAvailable on request
QACertificatesProject submittal support
BARIQ Y TYPE STRAINER Features :
- Y TYPE STRAINER use of pipeline strainers will make a significant contribution to the reliability of a piping system and to optimise performance of the equipment – pumps, valves, , traps etc
- Strainers are a low cost investment for any piping system and result in reduced maintenance costs as well as minimising ‘downtime’ by protecting the circuit from damage by foreign matter

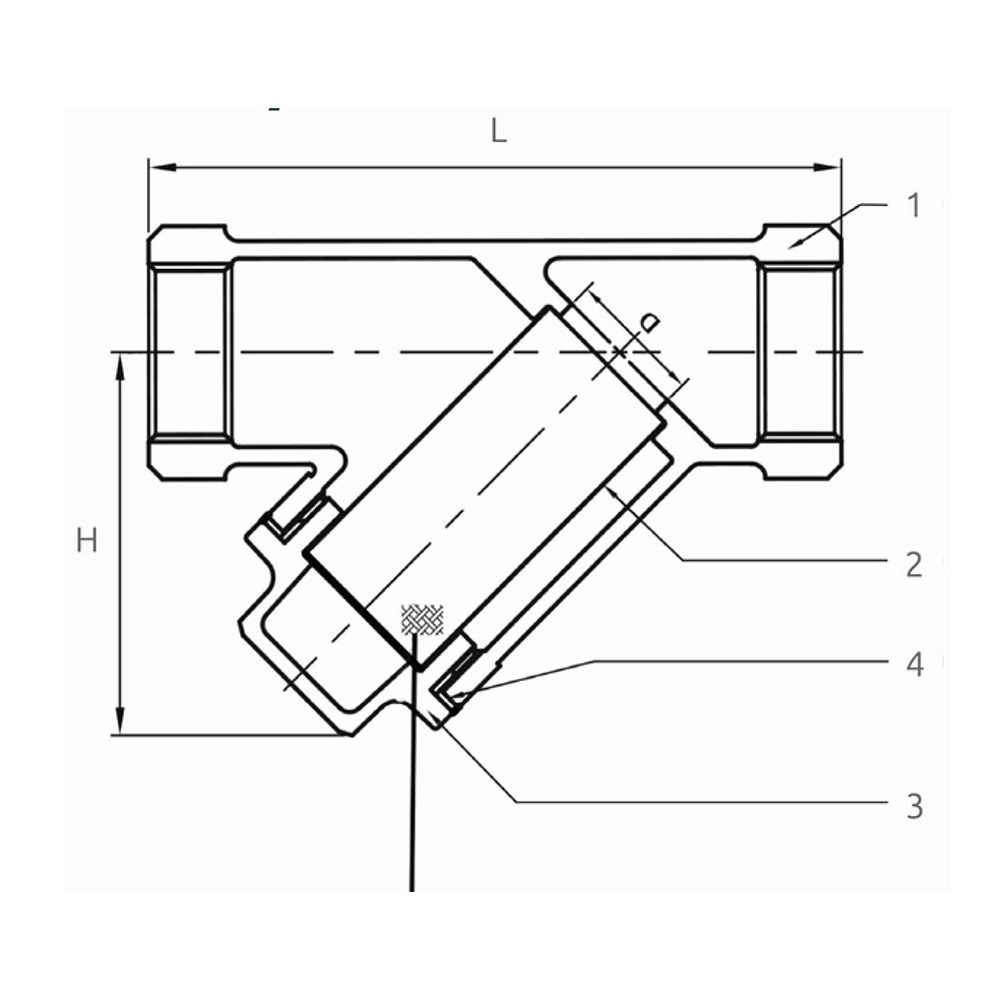

Material Specification :
| No | PART | MATERIAL |
| 1 | Body | Bronze |
| 2 | Mesh | SS 304 |
| 3 | Cap | Bronze |
| 4 | Cap Seal | PTFE |
Bariq S200 Parameters :
| Size | L | H | D | d1 | W | Kgs |
| ½” | 80 | 48.5 | 14 | 0.84 | 1.27 | 0.31 |
| ¾” | 100 | 58 | 19 | 0.84 | 1.27 | 0.49 |
| 1” | 115 | 70 | 25 | 0.84 | 1.27 | 0.71 |
| 1 ¼” | 135 | 80 | 31.8 | 0.84 | 1.27 | 0.99 |
| 1 ½” | 160 | 93 | 38.1 | 0.84 | 1.27 | 1.46 |
| 2” | 190 | 112 | 50 | 0.84 | 1.27 | 2.44 |
