BRONZE BALL VALVE PN40 Model L600

Inspection

Workingpressure	PN	16
Pressure test	PN	25
Working Temperature	°C	-10 up to 110Design
Workingpressure	PN	16
Pressure test	PN	25
Working Temperature	°C	-10 up to 110Design

2 Safety notes

2.1 Correct use
Safety in operation is only guaranteed if the valve isused correctly. Double regulating and commissioningvalves are installed in hot water central heating andchilled water A/C systems with a closed water circuitand serve to achieve a hydronic balance between thevarious circuits of the system.
Any use of the valve outside of the above applicationswill be considered as non-compliant and misuse.Claims of any kind against the manufacturer and/or hisauthorized representatives due to damages caused byincorrect use cannot be accepted.
The observance of the installation and operatinginstructions is part of the compliance terms.

3 Transport, storage and packaging

3.1 – Transport inspection
Upon receipt check delivery for any damages causedduring transit. Any damage must be reportedimmediately upon receipt.
3.2 – Storage
The double regulating and commissioning valve mustonly be stored under the following conditions:
-Do not store in open air, but dry and free from dust.
-Do not expose to aggressive fluids or heat sources.
-Protect the valve from direct sunlight andmechanical agitation.
-Storage temperature: -20 up to +60°C / -4°F up to140°F, max. relative humidity of air: 95 %

Technical data

4.1 – Performance data

DN40 – DN 300		Static Balancing Valve
Operating temperaturets temperaturetsOperating temperaturets	min	-10 °C / 14 °F
	max	100 °C / 212 °F
Operating pressure ps	max	1600 KPa / 230 psi

The double regulating and commissioningvalves “DRV4000 “ sized DN40-150 canbe used for a max. operating pressure upto 1600 KPa / 230 psi. Fluids: Non-aggressive fluids (e.g. waterand suitable water and glycol mixturesaccording to VDI 2035). Not suitable forsteam or oily and aggressive fluids. Thebronze double regulating andcommissioning valves “4000“ can also beused for cold salt water (max. 38 °C / 100°F) and domestic water. 4.2 – Materials Round flanges according to DIN EN1092-2, PN 16 Valve body (DN40 – DN 150 made ofductile iron GGG 40) Bonnet (DN40 – DN150 made of ductile iron GGG 40), discmade of GGG40, stem made of brass,disc with EPDM seal. stem with O-ring seal, nomaintenance required.

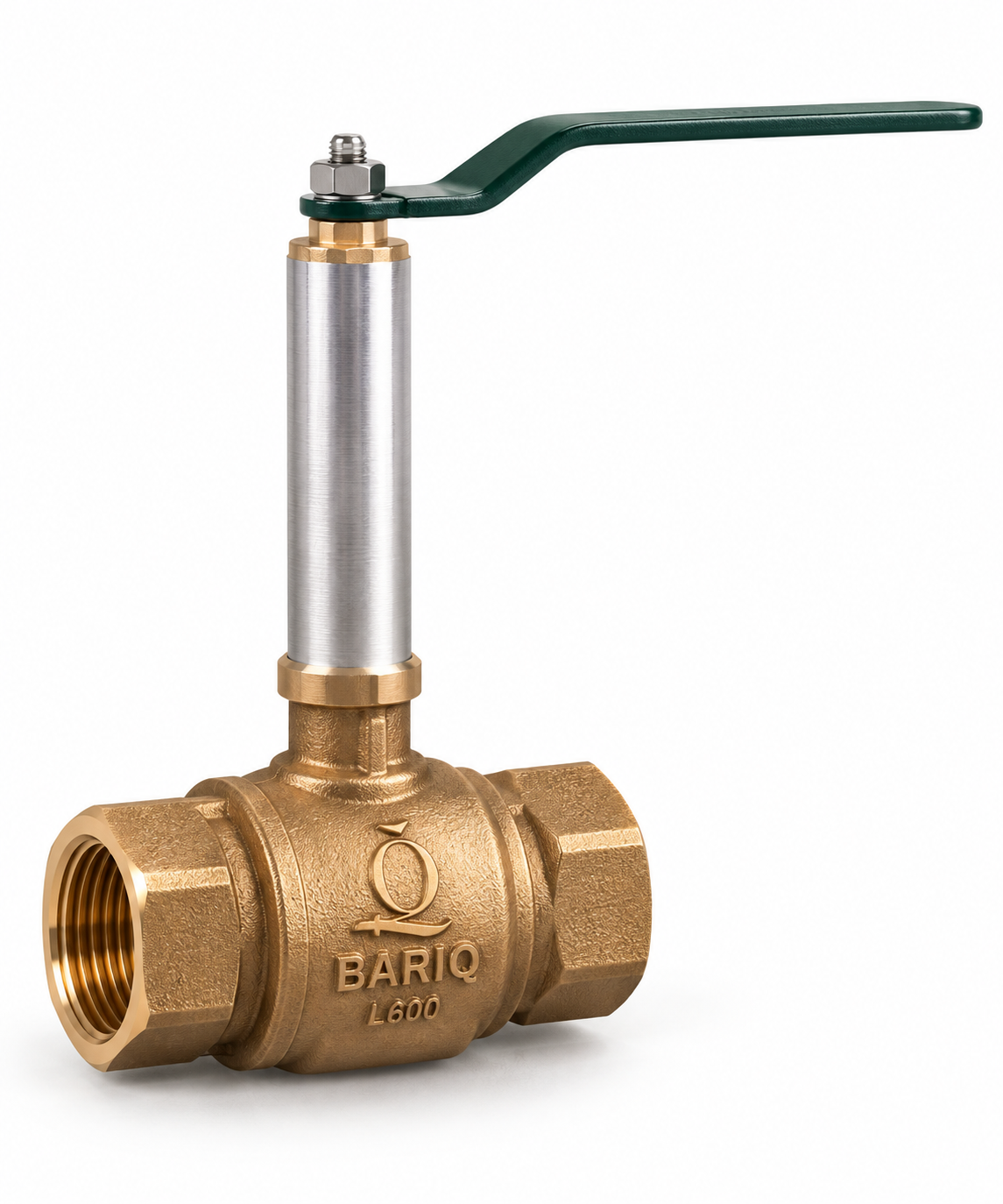

BARIQ L600 Extended Stem Bronze Ball Valve

The BARIQ L600 is a two-piece bronze ball valve with a full-port flow passage and metallic stem extension. Its stainless-steel ball and spindle, PTFE sealing components and lever operation provide a compact assembly for water and non-corrosive liquid service.

Product Overview

Product range	DN15-DN50 (1/2"-2")
Pressure rating	PN40
Connection	Female threaded
Thread options	BSPP / BSPT / NPT
Operating temperature	-10°C to +140°C
Applicable standard	MSS-SP-110
Body marking	600 WOG
Compatible fluids	Water and non-corrosive liquids

Design Highlights

Two-piece bronze body
Full-port design
Metallic stem extension
Stainless-steel ball and spindle
PTFE seat rings and packing
Dark-green lever handle

Construction Materials

Body and bonnet	C83600 / CC491K bronze
Ball and spindle	SS304
Seat rings and packing	PTFE
Extension stem	Zinc-plated carbon steel
Extension housing	Aluminium
O-ring	NBR (HA70)

Dimensions (mm)

Size	DN	L	C	ØB	H	D
1/2"	15	54	14.5	15	106.2	95
3/4"	20	62	15	20	117.2	110
1"	25	74	18	25	121.2	110
1 1/4"	32	85	18.5	32	145.7	141
1 1/2"	40	94	18.5	40	151.2	141
2"	50	109.5	19.5	50	165.2	165
