B3500 LUG

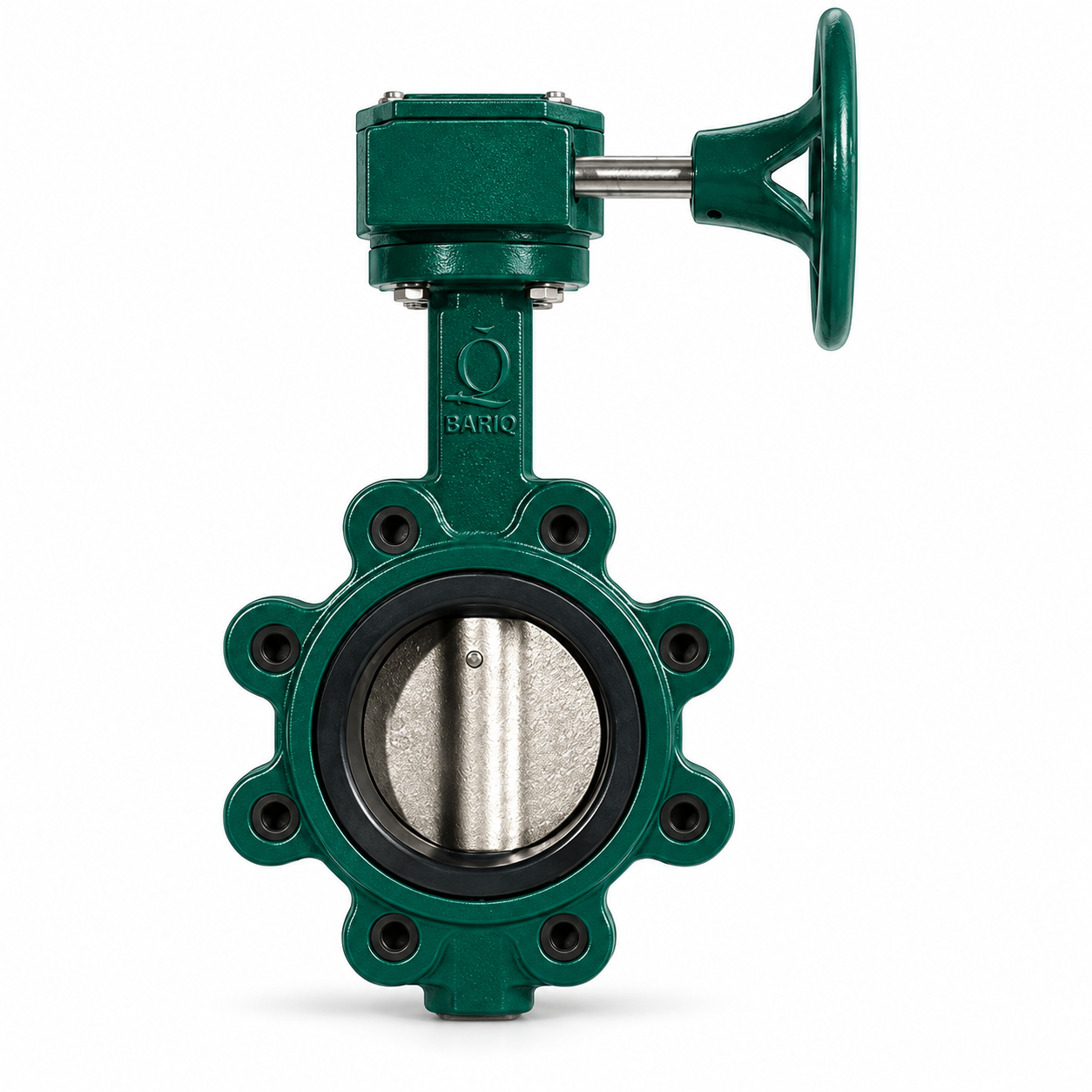

B3500 Lug Butterfly Valve PN16
Sizes: DN50-DN600 Pressure: PN16 Connection: Lug type, ANSI Class 150 Body: Ductile iron, 300-micron epoxy coating Disc / seat: CF8 stainless steel / EPDM Temperature: -20 to +120 °C DOWNLOAD DATA SHEET Request a…
Built for dependable
flow control.
B3500 - Lug Butterfly Valve The BARIQ B3500 is a resilient-seated lug butterfly valve for isolation and flow control in hydronic HVAC systems. Its ductile iron body features a 300-micron epoxy coating with a CF8 stainless steel disc and EPDM seat. Technical Specifications Product rangeDN50-DN600 Pressure ratingPN16 (16…
Know every critical detail.
Materials and construction details presented clearly for technical review.
Select a size.
See only what matters.
Choose the nominal size to display its dimensional data.
All values are in millimetres. Refer to the latest approved datasheet before final selection.
Everything your project needs.
B3500 – Lug Butterfly Valve
The BARIQ B3500 is a resilient-seated lug butterfly valve for isolation and flow control in hydronic HVAC systems. Its ductile iron body features a 300-micron epoxy coating with a CF8 stainless steel disc and EPDM seat.
Technical Specifications
| Product range | DN50-DN600 |
|---|---|
| Pressure rating | PN16 (16 bar) |
| Connection | Lug type, ANSI / ASME B16.5 Class 150 |
| Body | Ductile iron |
| Coating | Epoxy, 300 microns |
| Disc | CF8 stainless steel |
| Stem | SS304 stainless steel |
| Seat / O-rings | EPDM |
| Bushings | Reinforced PTFE |
| Operator | Worm gear with handwheel; lever or gear operated |
| Temperature range | -20 to +120 °C (EPDM) |
| Application | Hydronic HVAC water systems |
Design & Test Standards
| Design | API 609 |
|---|---|
| Face-to-face | API 609 |
| Pressure test | API 598 |
| Flange compatibility | ANSI / ASME B16.5 Class 150 |
| Operator mounting | ISO 5211 |
Dimensions
Dimensions in millimetres.
| DN | NPS | A | B | C | L |
|---|---|---|---|---|---|
| 50 | 2 | 80 | 169 | 32 | 43 |
| 65 | 2 1/2 | 89 | 176 | 32 | 46 |
| 80 | 3 | 95 | 183 | 32 | 46 |
| 100 | 4 | 114 | 201 | 32 | 52 |
| 125 | 5 | 127 | 214 | 32 | 56 |
| 150 | 6 | 139 | 229 | 32 | 56 |
| 200 | 8 | 175 | 257 | 45 | 60 |
| 250 | 10 | 203 | 280 | 45 | 68 |
| 300 | 12 | 242 | 327 | 45 | 78 |
The product range extends to DN600; the dimensional table above covers DN50-DN300 as listed in the datasheet.
Design Highlights
- Resilient-seated lug body for reliable shut-off and flow control.
- CF8 stainless steel disc for corrosion resistance.
- EPDM seat suitable for hydronic water service.
- ISO 5211 mounting for lever, gearbox or actuator options.
- 300-micron epoxy-coated ductile iron body.
Typical Applications
- Hydronic HVAC systems
- Water isolation service
- Flow control in water networks
